Our engineers are experts in achieving the perfect finish for your product. With painting, vapor polishing, sanding, anodizing and many other services to choose from, you can create the exact look you want. See how we ensure beautiful parts by reading about our different finishing services.

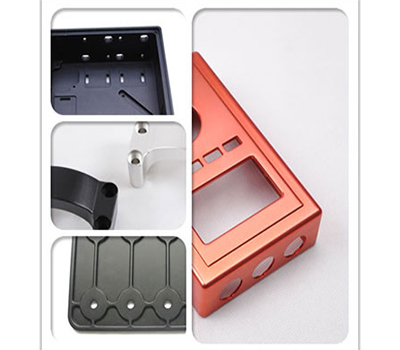

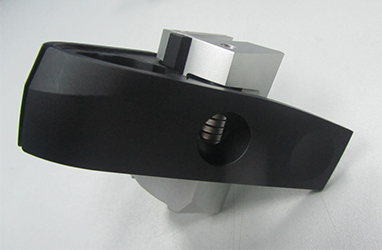

Anodizing

    Anodizing is an electrochemical technique for changing the surface properties of some metals. We are able to anodize aluminum, magnesium and titanium.
    There are many reasons to choose an anodized surface treatment. It improves corrosion protection, surface hardness,
wear resistance, aesthetic appearance and the adhesion of paints and primers. It also reduces electrical conductivity, helps to dissipate heat and reduces surface reflection.
    We use primarily Type II anodizing, which allows the surface to accept colorants and dyes. Type II is also ideal as a base for painting, which further increases corrosion protection.

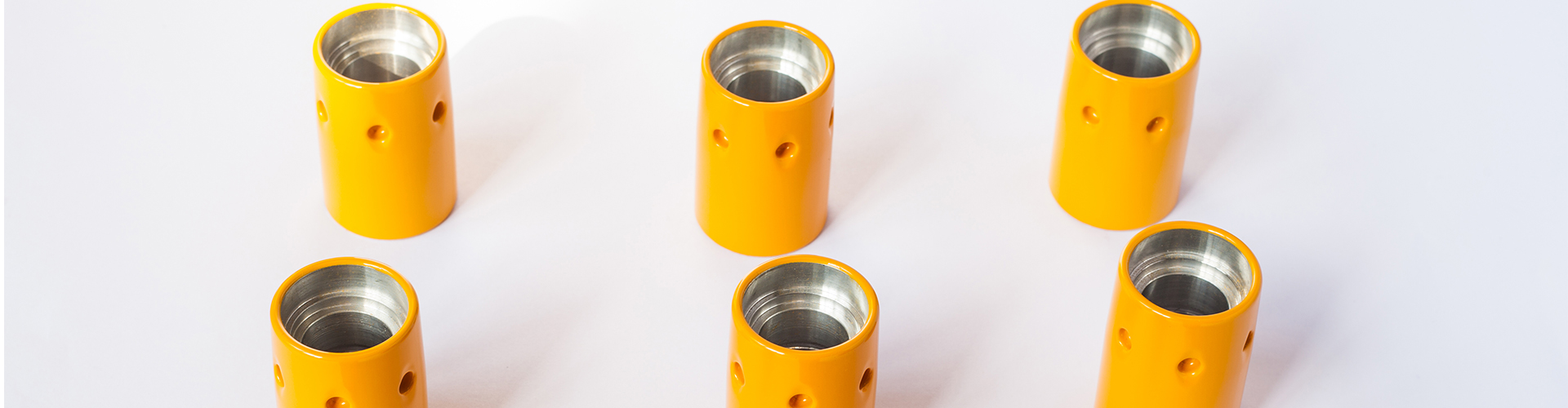

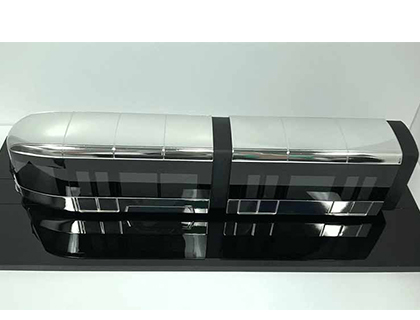

Painting

    Our technicians are able to produce any desired surface finish, including high gloss, matte, semi-gloss, metallic flakes and customized textures. We also do color-matched tinting for clear plastic parts.

    In addition, advanced technologies are employed to maintain not only clean-room conditions inside the painting area but also ensure that all fumes and contaminants from the painting process pass through a series of filters and traps so the evacuated air emerges cleaner than before. Just part of our commitment to responsible, world-class manufacturing.

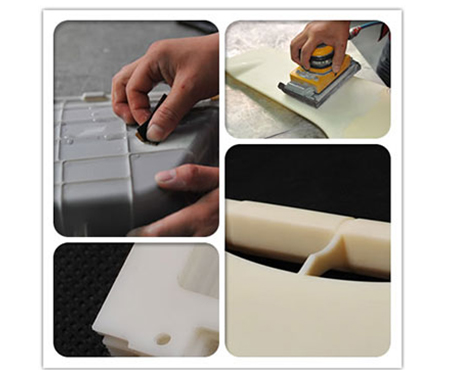

Sanding And Polishing

    Wet and dry sanding is often used to prepare a surface for painting, but it can also create unique surface textures which are an integral part of the final design. We can achieve highly finished surfaces up to mirror polish, suitable for stainless steel, aluminum and PMMA type plastics. Semi-gloss and matte surface textures are created by using less fine abrasives applied in a random, non-directional fashion. Standard brush finishes are created by progressive sanding in one direction only.


Pad Printing

    We apply pad printing in custom colors, and CNC manufacture customized aluminum stencils which are suitable for any flat or semi-curved surface. Silk-screening is also available which may be more suitable for some applications.

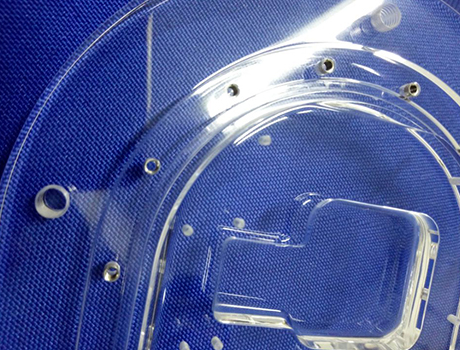

Vapor Polishing

    This is a specialized treatment we do in-house for achieving optical clarity on polycarbonate (PC) plastic. This method can also be used for repairing minor surface defects, and is ideal for achieving an extremely clear surface on complex geometries or hard to reach areas.

    After carefully preparing the part with sanding up to #1500 grit, it is then placed in an atmospherically controlled environment. Weldon 4 gas is used to melt the surface of the plastic at the molecular level, which rapidly reforms with all microscopic scratches blended out.
